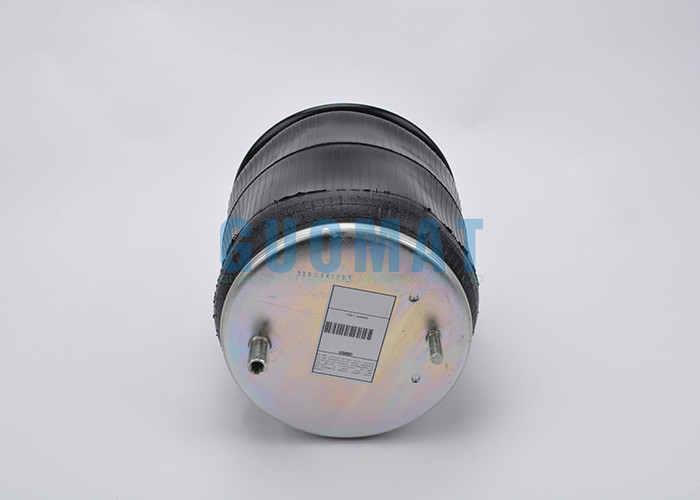

1T15M-6 Firestone W01-681-9084 Suspension Air Spring W01-358-9211 Granning 2692 Triangle 6363

Brand Name : GUOMAT

Model Number : 1T9084

Certification : ISO/TS16949

Place of Origin : Guangdong , China

MOQ : 1pc

Price : $59-159/pc

Payment Terms : T/T, Western Union,paypal or others

Supply Ability : 1000pcs/week

Delivery Time : 2-8 work days

Packaging Details : strong carton box or as customer's need

Material : Rubber ,Steel ,Aluminum

Bellows : 1T15M-6

FIRESTONE 1 : W01-358-9084

GOODYEAR : /

FIRESTONE 2 : W01-358-9211

Triangle : 6363

Granning : 2692

Contact Now

1T15M-6 FIRESTONE W01-681-9084 Suspension Air Spring W01-358-9211 Granning 2692 Triangle 6363

GUOMAT 1T9084 details OEM References

Firestone Piston
: W01-681-9084 Wc1 358 0697
1T 15M-6 Triangle
: W01-358-9211 : 8512/6363
Granning
2692/1 5690

GUOMAT 1T9084 Technical parameters

❶ Bolt/stud
Top cover plate bolt/stud teeth: 1/2-13UNC
Top cover screw center distance: 231 mm
❷ Air hole/air inlet/air connector
Air hole/air inlet: M22x1,5.
The distance between the air hole and the stud: 25 mm
Distance between air hole and central axis: 95 mm
❸ Cover
Top cover diameter: Ø311.5 mm
❹Rubber bellows
Natural diameter of rubber bellows: 355 mm
❺ Buffer block/buffer block
Bumper height: 30 mm
❻ Bottom piston
Diameter of the bottom piston: Ø257mm
Height of bottom piston: 188.5 mm
❼ Piston bolt
Piston bolt teeth: M16
12 bolts
Center inside between center bolts: 70 mm
Intermediate speed between center bolts: 120 mm

1T15M-6 Firestone W01-681-9084 Suspension Air Spring W01-358-9211 Granning 2692 Triangle 63631T15M-6 Firestone W01-681-9084 Suspension Air Spring W01-358-9211 Granning 2692 Triangle 63631T15M-6 Firestone W01-681-9084 Suspension Air Spring W01-358-9211 Granning 2692 Triangle 6363
